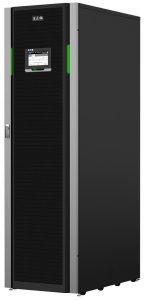

Eaton 93PM UPS Double Conversion (20-400kW)

UPS Systems | Eaton UPS Systems | Eaton 93PM UPS Double Conversion (20-400kW)

eaton-93PM_UPSenergy-star-logoThe Eaton 93PM UPS combines unprecedented efficiency, reliability and vertical or horizontal scalability with eye-catching design. A space-saving, flexible device that’s as easy to deploy as it is to manage, it’s the perfect three-phase white or grey space solution for today’s data center. The 93PM UPS has earned the ENERGY STAR.

Flywheel Technology: This model can be modified to use VYCON’s flywheel technology for a battery-free UPS solution.

Optional Lithium-Ion Batteries

The Eaton 93PM is available with optional Lithium-Ion Batteries. Li-Ion Batteries can be the perfect choice for your three phase UPS and offer several advantages over traditional valve-regulated, lead acid batteries commonly used in UPS today. Click here for more information on comparing Li-Ion to VRLA batteries.

  • Longer life expectancy – Li-ion can double or triple battery service life
  • More power in less space – Li-ion batteries take up only about one-third the space of VRLA with the same power
  • More forgiving in a wide range of temps – Li-ion batteries can withstand a wider temperature range than VRLA batteries
  • Reduced cooling requirements and costs – The wider temp range of Li-Ion can reduce the optimal operating temperature range
  • Less weight – Lithium-ion batteries offer a two-thirds weight reduction
  • Battery monitoring systems included – Sophisticated battery monitoring systems (BMS) included

Eaton 93PM UPS Features

  • Reduces power and cooling OPEX through industry-leading energy efficiency
  • Conserves valuable data center floor space with its compact footprint and internal redundancy design
  • Reduces cost and unexpected future growth risks with it’s vertical scalability, enabling you to scale as you grow
  • Maximizes deployment flexibility by providing innovative thermal management options, flexible configurability and full service access from the front
  • Simplifies installation by fitting perfectly in line or alongside any standard-depth rack
  • Scalable 400 kVA modular building block, allowing for cost-effective expansion to 1200 kVA
  • Supports front-to-top ventilation, ideal for against the wall configuration, making it a perfect fit for in-row configurations that support slim chimneys.
  • Supports front-to-back ventilation making it great for hot/ cold aisle configuration.
  • Provides easier access to detailed status information through its large, user-friendly LCD touchscreen interface
  • Optimizes server virtualization solutions through its full suite of power management and connectivity software
  • Increases uptime through its 24×7 remote monitoring and reporting capabilities

Eaton 93PM UPS Specifications

Power Rating20-400kW
Voltage480V (208 with IAC-D, available up to 100kW)
Frequency50/60 Hz
TopologyDouble conversion with optional Energy Saver System (ESS)
EfficiencyUp to 97% in double conversion
99% in Energy Saver System
ScalabilityUp to 8 internal power modules
External parallel up to 8 UPSs
ConfigurationTower
BatteriesInternal batteries up to 50 kW; external batteries up to 400 kW

For more in-depth product information, see the product sheet.
