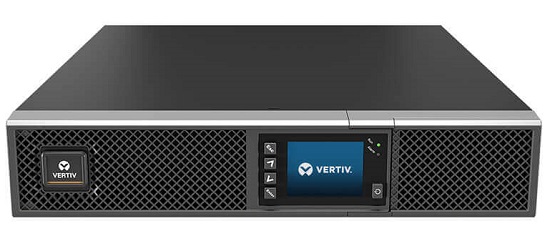

Vertiv Liebert GXT5-3000LVRT2UXL

Liebert GXT5-3000LVRT2UXLThe Vertiv Liebert GXT5-3000LVRT2UXL UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.

Vertiv Liebert GXT5-3000LVRT2UXL Features

  • Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
  • High power factor operation up to unity provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
  • Integrated serial connection for advanced console server integration or direct terminal control of the UPS
  • Energy Star 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
  • SNMP network communications with optional RDU101 NIC and free Trellis™ Power Insight
  • Gravity-sensing, color LCD for easy configuration and system diagnosis
  • Scalable power with auto-detection of external battery cabinets

Vertiv Liebert GXT5-3000LVRT2UXL Specifications

Power Rating: 3000VA / 2700W
Input Voltage: Typical: 120V / Range: 60-150V
Output Voltage: 110/115/120/125VAC; (user-configurable); ±3%
Efficiency: Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring: Input: NEMA L5-30P; Output: L5-30R+5-20R × 6
Interface Options: Optional communications card (Vertiv RDU101), USB, RS485, RS232, terminal block, external battery connector
Protocols: SNMP and web management enabled with optional Vertiv RDU101 communications card; serial connection for out-of-band management
Control Panel: Colored graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
Operating Temperature: +32 to +104 °F (0 to 40 °C)
General: Output Receptacles: 1 x L5-30R + 5-20R × 6; 4 x 5-20R individually programmable receptacles and 1 x L5-30R and 2 x 5-20R non-programmable receptacles
Listings: ENERGY STAR 2.0 certified, WEEE, RoHS2, REACH, UL 1778 4th edition and CSA 22.2 No. 107.1
Topology: On-line double conversion UPS; compact and flexible rack/tower form factor
