Alpha INEX Inverter

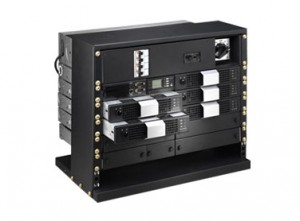

Alpha INEX InverterThe Alpha INEX Inverter, 48V Inverter System, by Alpha Technologies, an EnerSys Company, is an integrated telecommunications power system, including inverter, static switch, LCD display controller and interface modules. It offers a versatile “building block” design and N+1 redundant configuration, the INEX inverter system meets the increasingly complex telecommunications and industrial power demands, and provides ultimate flexibility for the current and future power requirements of your facility.

N+1 parallel redundancy allows the power capacity to be expandable up to 18kVA. INEX “all master” dynamic mechanism automatically shares and re-organizes critical loads to prevent interruption should any inverter module fail. The DSP-micro-processing controller gives real-time system status through a comprehensive LCD display, and allows programmable settings through the display panel. With a communication interface module installed, you can further control and monitor the system remotely.

Alpha INEX Inverter Features

  • Versatile modular inverter system design provides flexible power for different applications
  • Expandable capacity up to 18kVA with N+1 redundancy configuration
  • “All master” in dynamic mechanism eliminates single point of failure to optimize reliability
  • Hot swappable operation allows module addition or removal without powering down
  • High power density and high efficiency

INEX Specifications

Inverter Module DC Input Nominal Voltage: 48Vdc
Operating Range: 40.5Vdc ~ 58Vdc
AC Output Power Rating: 1500VA/1200W
Waveform: Pure sine wave Power Factor: 0.8



For more in-depth specifications, see the data sheet.

For more information about Alpha Inverters,
call 800-876-9373 or email [email protected].
