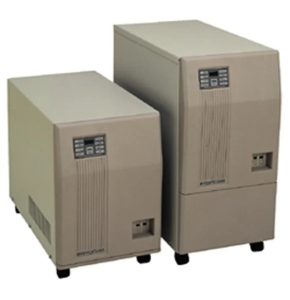

Trystar MD Series

The Trystar MD Series UPS, 3.1kVA to 7.5kVA, is a single phase, seamless transfer, uninterruptible power system providing premium power to various types of loads ranging from industrial to information technology.

The MD Series purifies polluted, fluctuating, and erratic power resulting in well-regulated, clean, uninterrupted, computer-grade power. Up to 18 minutes of internal battery backup is provided with external battery options available that can provide several hours of runtime at full load.

Trystar MD Series Features

• Steady, regulated voltage to ±3%, providing proven performance and extending the life of equipment
• Highest level performance sine wave output
• 100% power conditioning
• No-break, continuous power provides seamless switching to battery backup
• Patented “Fuzzy Ranging”™ control extends battery life and backup time
• Optional extended backup time
• Optional NetMinder UPS Communications software and hardware for UPS monitoring and network management

Trystar MD Series Specifications

• Voltage Regulation: +/3%
• Load Regulation: typically better than +/- 3%
• Overload Capability: 125% for 10 min
• Surge Capability: 150% of rated output
• Input Operating Range: +10 to -40% (typical)
• Input Current THD: < 10%
• K-Factor: 30 or better
• Operating Temperature: 0°C to 40°C
• Common Mode Noise Attenuation: 120dB
• Transverse Mode (Line) Noise Attenuation: 70dB
• Spike Attenuation 3000:1
• Crest Factor 3.5:1

For more in-depth specifications, see the data sheet.
